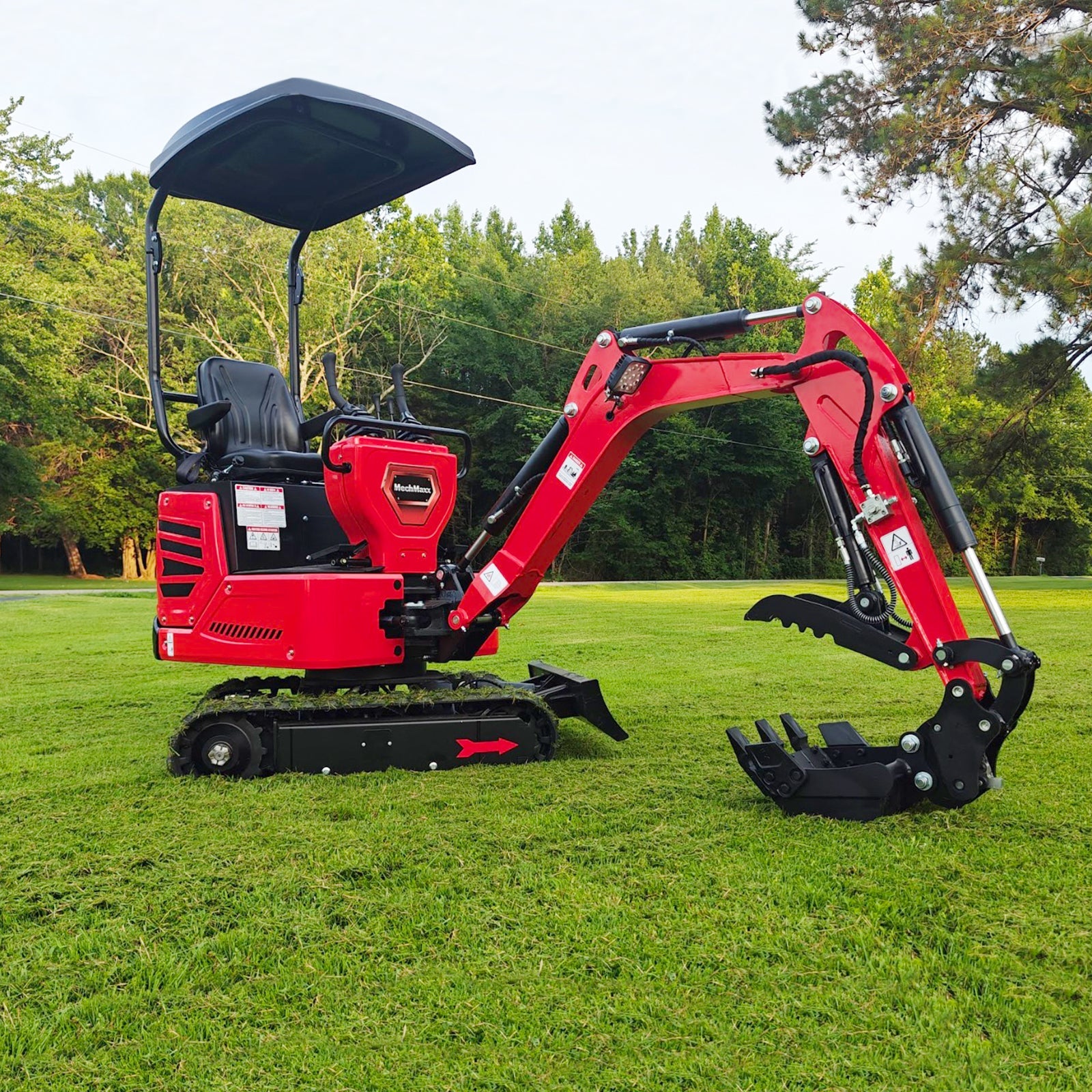

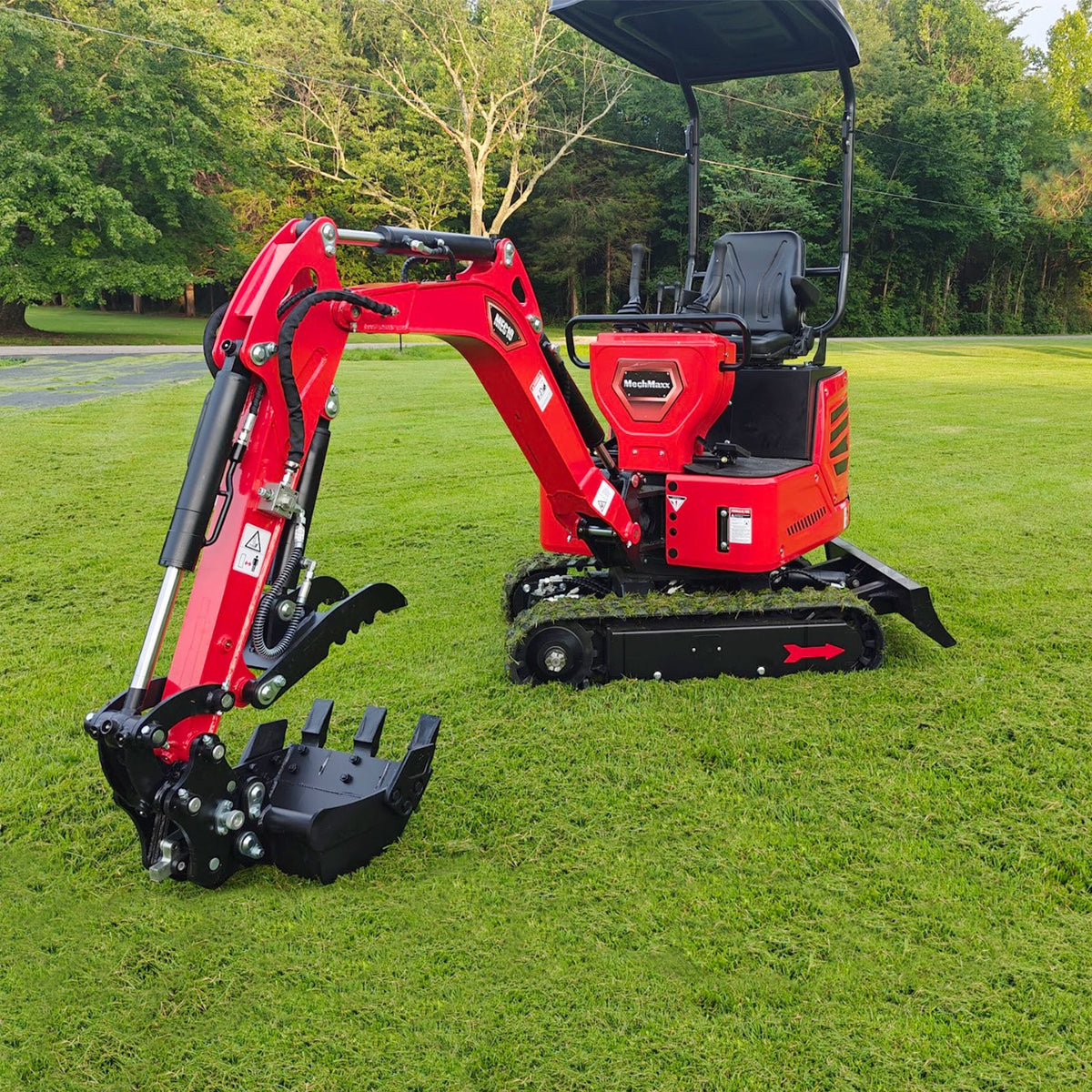

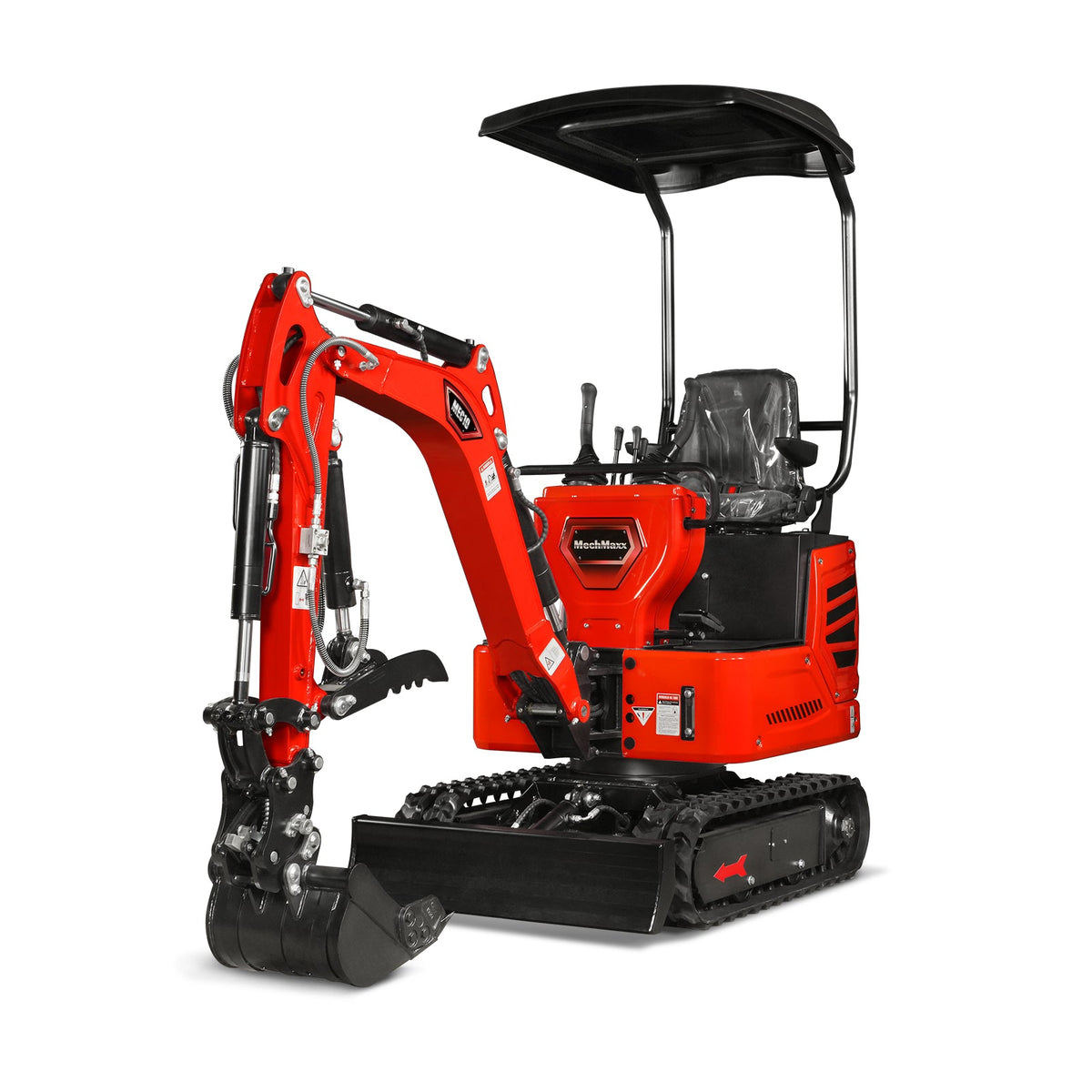

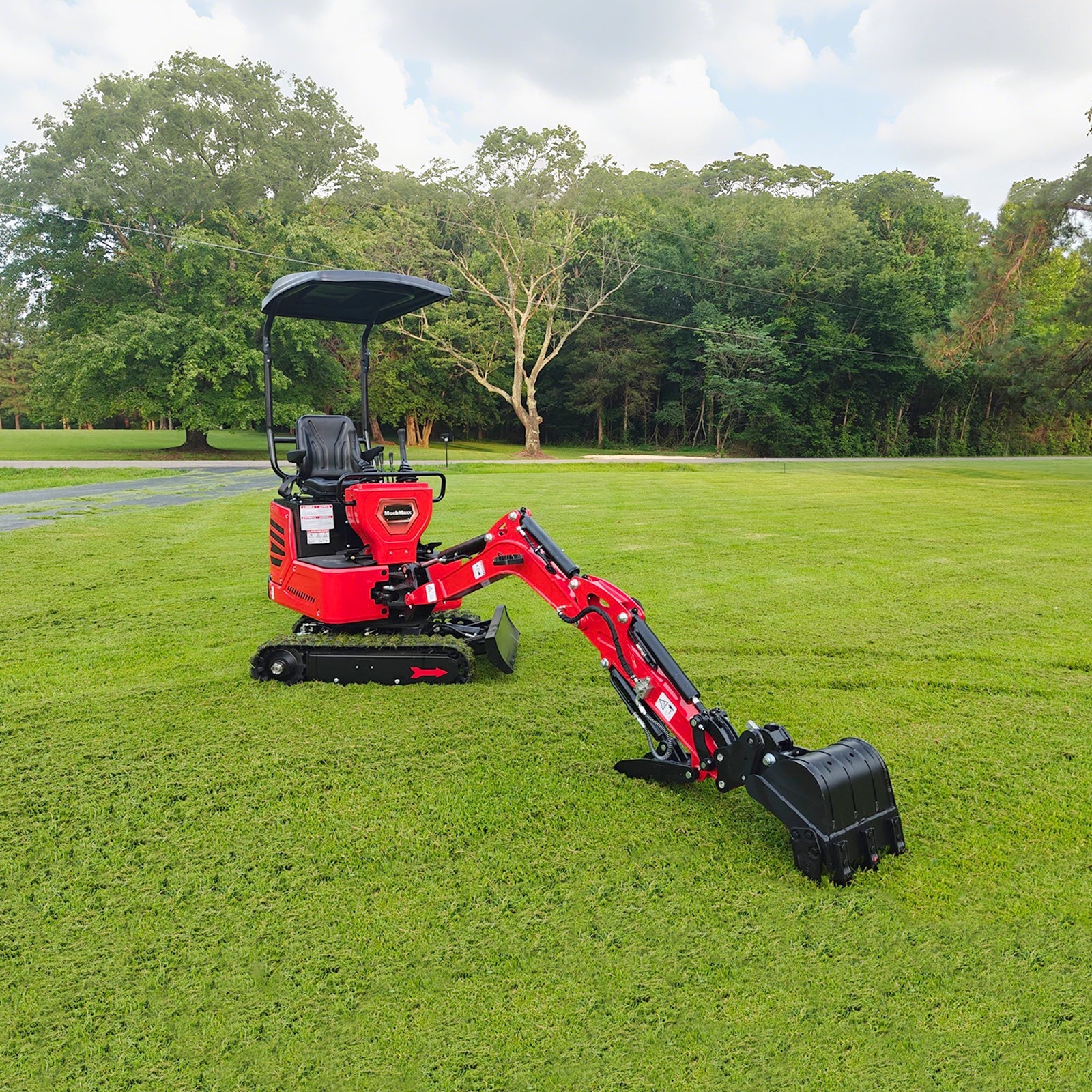

MEC10 1-Ton Mini Excavator with Hydraulic Thumb

The MEC10 compact crawler excavator has a listed 389cc, 11.7 HP engine and 36-inch chassis width. A hydraulic thumb, boom swing and semi-automatic quick hitch support compatible digging and handling tasks.

• 389cc 11.7HP Engine: 4-stroke overhead-valve single-cylinder engine with electric start.
• Compact 36-Inch Chassis: Narrow overall width supports operation in backyards, alleys, and confined job sites.
• 65.7-Inch Maximum Digging Depth: Maximum ground digging radius of 119 inches and maximum digging radius of 121 inches.
• Hydraulic Thumb: Supports handling rocks, branches, brush, and similar materials from the operator position.
• 360-Degree Rotation: Full upper-structure rotation for flexible positioning.
• Boom Swing: 53 degrees left and 40 degrees right.
• Semi-Automatic Quick Hitch: Designed for easier attachment connection and removal.
• Hydraulic Oil Radiator: Helps manage hydraulic oil temperature during operation.

Specifications
Model: MEC10
Operating Weight: 2,280 lb
Standard Bucket Capacity: 0.7 cu ft
Standard Bucket Width: 15 in
Auxiliary Standard Flow: 5.7 gal/min
Max Travel Speed: 0.75 mph
Slewing Speed: 11 rpm
Max Gradeability: 30°
Rated Lift Capacity: 728 lb
Max Digging Depth: 65.7 in
Max Vertical Digging Depth: 63.3 in
Max Ground Digging Radius: 119 in
Max Digging Radius: 121 in
Max Unloading Height: 81.8 in
Overall Height: 89.3 in
Chassis Width: 36 in
Track Width: 7 in
Engine Displacement: 389cc
Engine Power: 11.7 HP
Fuel Tank Capacity: 1.6 gal
Start Type: Electric Start
Package Dimensions: 91 x 40 x 98 in

All Point Sales support

Questions about fit or configuration? Contact All Point Sales before ordering. See our shipping policy and return policy.
